HDA Climate DT Parameter Plotter - Tutorial

pip install --user --quiet --upgrade destinelab

import destinelab as deauth
import json
from datetime import date, datetime, timedelta

import requests
from requests.adapters import HTTPAdapter
from urllib3.util.retry import Retry
import os
import re
from getpass import getpass
from tqdm import tqdm
import time
from IPython.display import JSON, display, HTML

import pandas as pd
import ipywidgets as w

# parse STAC temporal interval into date objects
def parse_time_extent(interval_string):
    start_iso, end_iso = interval_string.split()
    to_date = lambda s: (datetime.fromisoformat(s.replace("Z","")).date() if s else None)
    sd, ed = to_date(start_iso), to_date(end_iso)
    s_txt = sd.isoformat() if sd else "open"
    e_txt = ed.isoformat() if ed else "open"
    return sd, ed, f"{s_txt} → {e_txt}"


#show the info of the selected variable
def show_variable_info(change):
    q = combo.value.lower()
    with out:
        out.clear_output()
        # Find all keys containing the query
        matches = [k for k in keys if q in k.lower()]
        # Print matching keys
        for k in matches:
            print(k)

        # Trigger variable info if only one match exists
        if len(matches) == 1:

            selected_key = matches[0]

            var = collection_json["cube:variables"][selected_key]

            attrs = var.get("attrs", {})

            selected["name"]         = selected_key
            selected["parameter_ID"] = attrs.get("parameter_ID")
            selected["levtype"]      = attrs.get("levtype")
            selected["time"]         = attrs.get("time")
            selected["levelist"]     = attrs.get("levelist")
            selected["stream"]     = attrs.get("stream")

            print(json.dumps(attrs, indent=2))

            print("\nSaved selection:")
            print({k: selected[k] for k in ["name","parameter_ID","levtype","time","stream"]})

#shows dates selection
def refresh(change=None):
    selected["chosen_date"] = dp.value or (selected_collection["start_date"] or date.today())
    dt = datetime(selected["chosen_date"].year, selected["chosen_date"].month, selected["chosen_date"].day, 00, 00)
    out2.value = f"<ul><li><b>Collection:</b> {selected_collection['id']}</li><li><b>DateTime(UTC):</b> {dt.isoformat()}Z</li>"

#shows hours and levels selection
def refresh_hl(_=None):
    # Persist hour (if shown)
    if hour_dd is not None:
        selected["hour"] = hour_dd.value  # e.g., "14:00"
    else:
        selected.pop("hour", None)

    # Persist selected levels as a list (if shown)
    if levels_ms is not None:
        selected["levels"] = list(levels_ms.value)  # e.g., ["11","100"]
    else:
        selected.pop("levels", None)

    with out:
        out.clear_output()
        print(f"Variable: {selected.get('name')}")
        print(f"Time: {selected.get('time')}  |  Levtype: {selected.get('levtype')}")
        if "hour" in selected:
            print(f"Selected hour: {selected['hour']}")
        if "levels" in selected:
            print(f"Selected levels: {selected['levels'] if selected['levels'] else '(none)'}")
        if "year" in selected:
            print(f"Selected year: {selected['year']}")
        if "month" in selected:
            print(f"Selected month: {selected['month'] if selected['month'] else '(none)'}")
        if levels_ms is None:
            print("No levels selector (no 'levelist' provided).")


def on_generation_change(change):
    with output:
        output.clear_output()
        df = discover_climate_dt(change["new"].split("/")[0],change["new"].split("/")[1])
        # store values
        selected_collection["df"] = df
        display(HTML(df.drop(columns=["HDA - Climate DT descripton"]).to_html(index=False)))


def on_collection_change(change):

    if change["name"] == "value" and change["type"] == "change":
        title, collection_id, description, time_extension = change["new"]


        # store values
        selected_collection["title"] = title
        selected_collection["id"] = collection_id
        selected_collection["description"] = description
        selected_collection["time"] = time_extension
        sd, ed, extent_txt = parse_time_extent(time_extension)
        selected_collection["start_date"] = sd
        selected_collection["end_date"] = ed


        with out:
            out.clear_output()
            print("Selected collection title:\n--------------")
            print(title if title else "(no title)")
            print("\n\nSelected collection  ID\n--------------")
            print(collection_id if collection_id else "(no ID)")
            print("\n\nSelected collection  description\n--------------")
            print(description if description else "(no description)")
            print("\n\nTime extent:\n--------------")
            print(time_extension)
            refresh()

HDA_STAC_ENDPOINT="https://hda.data.destination-earth.eu/stac/v2"
print("STAC endpoint: ", HDA_STAC_ENDPOINT)
HDA_DISCOVERY_ENDPOINT = HDA_STAC_ENDPOINT+'/collections'
print("HDA discovery endpoint: ", HDA_DISCOVERY_ENDPOINT)

selected_collection = {}

# This function uses the HDA_DISCOVERY_ENDPOINT to discover Climate Change Adaptation DT collections by generation.
# Generation-2 corresponds to DestinE Phase II.
def discover_climate_dt(generation,simulation_type):
    #discovery response
    params = {
        "q": f'{generation} AND "{simulation_type}"'
    }

    resp = requests.get(HDA_DISCOVERY_ENDPOINT, params=params, timeout=60)
    resp.raise_for_status()
    discovery_json = resp.json()

    rows = []
    for c in discovery_json.get("collections", []):
        interval = c.get("extent", {}).get("temporal", {}).get("interval", [])
        if interval and interval[0]:
            start, end = interval[0]
            start_date = start.split("T")[0]
            end_date   = end.split("T")[0]
        else:
            start_date, end_date = "", ""

        rows.append({
            "HDA - Climate DT collection title": c.get("title"),
            "HDA - Climate DT collection ID": c.get("id"),
            "Time Extension": f"{start_date} {end_date}",
            "HDA - Climate DT descripton": c.get("description")
        })

    df = pd.DataFrame(rows).reset_index(drop=True)
    return df

## below the code for the widget creaton and the output table
generation_selector = w.Dropdown(
    options=[
        ("Phase 2 Climate DT - Multi-decadal Simulations - Historical", "generation-2/(Climate Adaptation DT) - Historical Simulation"),
        ("Phase 2 Climate DT - Multi-decadal Simulations - Projections", "generation-2/(Climate Adaptation DT) - Future Projection"),
        ("Phase 2 Climate DT - Multi-decadal Simulations - Control", "generation-2/(Climate Adaptation DT) - Control Simulation"),
        ("Phase 2 Climate DT - Storyline Simulations - present climate", "generation-2/(Climate Adaptation DT) - Storyline Simulation Present Climate "),
        ("Phase 2 Climate DT - Storyline Simulations - past climate", "generation-2/(Climate Adaptation DT) - Storyline Simulation Past Climate"),
        ("Phase 2 Climate DT - Storyline Simulations - future climate (+2K)", "generation-2/(Climate Adaptation DT) - Storyline Simulation Future Climate "),
        ("Phase 1 Climate DT - Multi-decadal Simulations - Historical", "generation-1/(Climate Adaptation DT) - Historical Simulation"),
        ("Phase 1 Climate DT - Multi-decadal Simulations - Projections", "generation-1/(Climate Adaptation DT) - Future Projection"),
        ("Phase 1 Climate DT - Multi-decadal Simulations - Control", "generation-1/(Climate Adaptation DT) - Control Simulation"),
        ("Phase 1 Climate DT - Storyline Simulations - present climate", "generation-1/(Climate Adaptation DT) - Storyline Simulation Present Climate "),
        ("Phase 1 Climate DT - Storyline Simulations - past climate", "generation-1/(Climate Adaptation DT) - Storyline Simulation Past Climate"),
        ("Phase 1 Climate DT - Storyline Simulations - future climate (+2K)", "generation-1/(Climate Adaptation DT) - Storyline Simulation Future Climate "),
        ("Phase 1 nextGEMS - Historical Simulation", "generation-1/nextGEMS - Historical Simulation"),
        ("Phase 1 nextGEMS - Future Projection", "generation-1/nextGEMS - Future Projection"),
    ],
    value="generation-2/(Climate Adaptation DT) - Historical Simulation",
    description="Simulation:",layout=w.Layout(width='600px') ,
    style={"description_width": "initial"}
)


output = w.Output()
generation_selector.observe(on_generation_change, names="value")
display(generation_selector)
display(output)
# Initial display
df_initial = discover_climate_dt(generation_selector.value.split("/")[0],generation_selector.value.split("/")[1])
selected_collection["df"]= df_initial
with output:
    display(HTML(df_initial.drop(columns=["HDA - Climate DT descripton"]).to_html(index=False)))

selected = {}
options=[
    (
        row["HDA - Climate DT collection title"],  # label (shown)
        (
            row["HDA - Climate DT collection title"],
            row["HDA - Climate DT collection ID"],
            row["HDA - Climate DT descripton"],
            row["Time Extension"]
        )
    )
    for _, row in selected_collection["df"].iterrows()
]
out = w.Output()
# Collection selection
collection_selector = w.Select(
    options=options,
    value=options[0][1],
    rows=8,
    description="Collections:",
    layout=w.Layout(width='600px')
)

# Date selection
sd, ed, timestring = parse_time_extent((options[0][1][3]))
dp = w.DatePicker(
    description="Date:",
    value=selected_collection.get("start_date",sd),
    disabled=False,
)


if selected_collection.get("start_date"):
    dp.min = selected_collection.get("start_date", sd)
if selected_collection.get("end_date"):
    dp.max = selected_collection.get("end_date", ed)

dp.observe(refresh, names="value")
out2 = w.HTML()

collection_selector.observe(on_collection_change, names="value")
on_collection_change({"name": "value", "type": "change", "new": collection_selector.value})


refresh({"name": "value", "type": "change", "new": dp.value})



#display all
# Left panel (selectors)
left_panel = w.VBox(
    [w.HTML("<h4>Select Collection and date</h4>"),
        collection_selector,
    w.HTML("""
    <div style="margin-bottom: 20px;">
    Note:<ul><li>The full selected date is used for hourly and daily parameters (clte).</li><li>The month and year part are considered for monthly mean parameters (clmn).</li></ul></div><b>Selection:</b>"""),
     dp,out2],
    layout=w.Layout(
        width='60%',
        padding='10px'
    )
)

# Right panel (output / metadata)
right_panel = w.VBox(
    [out],
    layout=w.Layout(
        width='40%',
        padding='10px',
        border='1px solid #ddd',
        overflow='auto'  # scroll if content is long
    )
)


ui = w.HBox(
    [left_panel, right_panel],
    layout=w.Layout(
        width='100%',
        align_items='flex-start'
    )
)

display(ui)

collection_json = requests.get(
    HDA_STAC_ENDPOINT+"/collections/"+selected_collection['id'],
).json()

keys = sorted(collection_json["cube:variables"])

print("\nType in the Combobox to narrow the list and select a variable for your data request.\n")

combo = w.Combobox(
    placeholder="Start typing…",
    options=keys,
    description="Variable:",
    ensure_option=False,
)

out = w.Output()

# container to reuse later
selected["parameter_ID"] = selected["levtype"] = selected["time"] = selected["name"] = selected["stream"] =  selected["year"] = selected["month"] = None

combo.observe(show_variable_info, names="value")

display(combo, out)
show_variable_info(None)

# ensure a variable was selected earlier ---
if not selected or not selected.get("name"):
    print ("\nPlease select a variable by narrowing down the list in the cell above!")
    raise  ValueError("\nPlease select a variable by narrowing down the list in the cell above!")


widgets = []
hour_dd = None
levels_ms = None


# 1) Hour selector only if time is 'Hourly'
if selected.get("time") == "Hourly":
    hour_dd = w.Dropdown(
        options=[f"{h:02d}:00" for h in range(24)],
        value="00:00",
        description="Hour:"
    )
    widgets.append(hour_dd)

# 2) Levels selector only if levelist exists; split on commas, slashes, or whitespace

if selected.get("levelist"):
    levels_raw = selected.get("levelist")

    if ("," in levels_raw):
        levels = levels_raw.split(",")
    else:
        levels =[levels_raw]

    levels_ms = w.SelectMultiple(
        options=levels,
        value=(levels[0],),  # nothing preselected
        rows=min(10, max(5, len(levels))),
        description="Levels:"
    )
    widgets.append(levels_ms)


# 3) Year + Month selector ONLY if stream == "clmn"
if selected.get("stream") == "clmn":
    # valid years
    selected["year"] =  selected["chosen_date"].year
    selected["month"] = selected["chosen_date"].month


out = w.Output()

# Wire events
if hour_dd is not None:
    hour_dd.observe(refresh_hl, names="value")
if levels_ms is not None:
    levels_ms.observe(refresh_hl, names="value")

display(*(widgets + [out]))
refresh_hl()

DESP_USERNAME = input("Please input your DESP username: ")
DESP_PASSWORD = getpass("Please input your DESP password: ")

auth = deauth.AuthHandler(DESP_USERNAME, DESP_PASSWORD)
access_token = auth.get_token()
if access_token is not None:
    print("DEDL/DESP Access Token Obtained Successfully")
else:
    print("Failed to Obtain DEDL/DESP Access Token")

auth_headers = {"Authorization": f"Bearer {access_token}"}

auth.is_DTaccess_allowed(access_token)

filter_params = {
  "ecmwf:resolution": "standard",      # can be tandard or high
  "ecmwf:levtype": selected["levtype"],
  "ecmwf:param": [str(selected["parameter_ID"])],
  "ecmwf:stream": selected["stream"]
}

# If stream is "clmn", for monthly mean climate run output, insert year and month
if (selected.get("stream")=="clmn"):
    filter_params["ecmwf:year"]=[str(selected['year'])]
    filter_params["ecmwf:month"]=[str(selected['month'])]
    selected["chosen_date"]= None


# Check if levelist is not empty and add it
if (selected.get("levelist")):
    filter_params["ecmwf:levelist"]=selected['levels']

filter_params["ecmwf:time"]=["0000"]
if (selected.get("hour")):
    filter_params["ecmwf:time"]=[selected['hour'].replace(":", "")]

hdaFilters = {
    key: {"eq": value}
    for key, value in filter_params.items()
}
print("HDA search request body for our data of interest:")
print(json.dumps(hdaFilters, indent=4))

#Sometimes requests to polytope get timeouts, it is then convenient define a retry strategy
retry_strategy = Retry(
    total=10,  # Total number of retries
    status_forcelist=[500, 502, 503, 504],  # List of 5xx status codes to retry on
    allowed_methods=["GET",'POST'],  # Methods to retry
    backoff_factor=1  # Wait time between retries (exponential backoff)
)

# Create an adapter with the retry strategy
adapter = HTTPAdapter(max_retries=retry_strategy)

# Create a session and mount the adapter
session = requests.Session()
session.mount("https://", adapter)

COLLECTION_ID=selected_collection['id']

if(selected["stream"]=="clmn"):
   search_body = {
     "collections": [COLLECTION_ID],
     "query":  hdaFilters
    }
else:
    search_body = {
     "collections": [COLLECTION_ID],
     "datetime": f'{selected["chosen_date"].isoformat()}T00:00Z',
     "query":  hdaFilters
    }

response = requests.post(HDA_STAC_ENDPOINT+"/search", headers=auth_headers, json=search_body)

if(response.status_code!= 200):
    (print(response.text))
response.raise_for_status()

product = response.json()["features"][0]
JSON(product)

link = next((l for l in product.get('links', []) if l.get("rel") == "retrieve"), None)

if link:
    href = link.get("href")
    body = link.get("body")   # optional: depends on extension
    print("order endpoint:", href)
    print("order body, same as the polytope format:")
    print(json.dumps(body, indent=4))
else:
    print(f"No link with rel='{target_rel}' found")

response = session.post(href, json=body, headers=auth_headers)

if response.status_code != 200:
    print(response.content)
response.raise_for_status()

ordered_item = response.json()

product_id = ordered_item["id"]
order_status = ordered_item["properties"].get("order:status", "unknown")
federation_backend = ordered_item["properties"].get("federation:backends", [None])[0]

print(f"Product ordered: {product_id}")
print(f"Provider: {federation_backend}")
print(f"Order status: {order_status}")

#timeout and step for polling (sec)
TIMEOUT = 300
STEP = 1
ORDER_STATUS = "succeeded"

self_url = f"{HDA_STAC_ENDPOINT}/collections/{COLLECTION_ID}/items/{product_id}"
item = {}

for i in range(0, TIMEOUT, STEP):
    print(f"Polling {i + 1}/{TIMEOUT // STEP}")

    response = session.get(self_url, headers=auth_headers)
    if response.status_code != 200:
        print(response.content)
    response.raise_for_status()
    item = response.json()
    print(item["properties"].get("order:status"))
    status = item["properties"].get("order:status")

    if status == ORDER_STATUS:
        download_url = item["assets"]["downloadLink"]["href"]
        print("Product is ready to be downloaded.")
        print(f"Asset URL: {download_url}")
        break

    time.sleep(STEP)
else:
    order_status = item["properties"].get("order:status", "unknown")
    print(f"We could not download the product after {TIMEOUT // STEP} tries. Current order status is {order_status}")


response = session.get(download_url, stream=True, headers=auth_headers)
response.raise_for_status()

content_disposition = response.headers.get('Content-Disposition')
total_size = int(response.headers.get("content-length", 0))
if content_disposition:
    filename = content_disposition.split('filename=')[1].split('"')[1]
else:
    filename = os.path.basename(url)

# Open a local file in binary write mode and write the content
print(f"downloading {filename}")

with tqdm(total=total_size, unit="B", unit_scale=True) as progress_bar:
    with open(filename, 'wb') as f:
        for data in response.iter_content(1024):
            progress_bar.update(len(data))
            f.write(data)

import earthkit.data
import earthkit.plots
import earthkit.regrid

data = earthkit.data.from_source("file", filename)

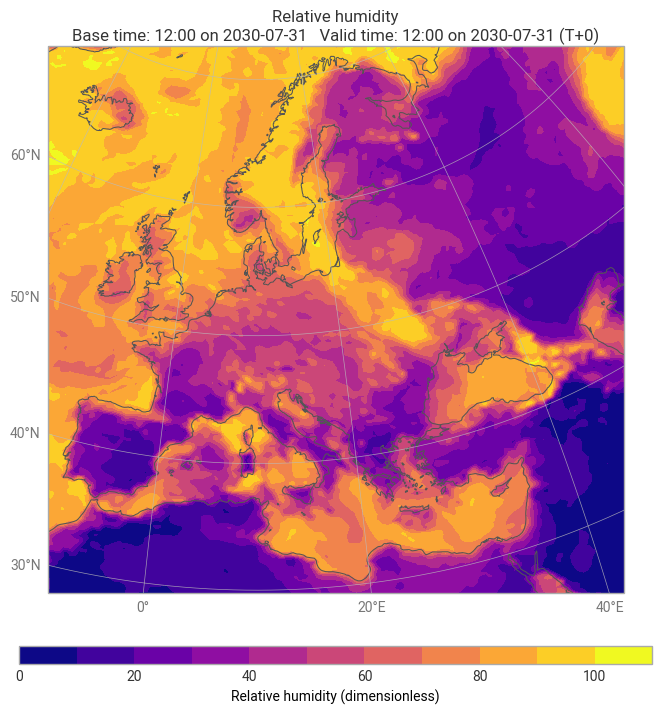

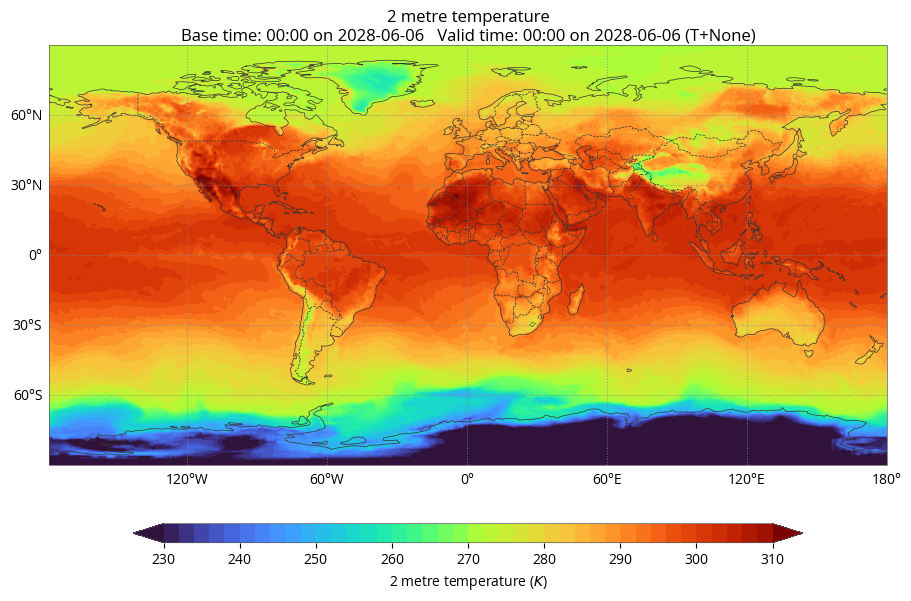

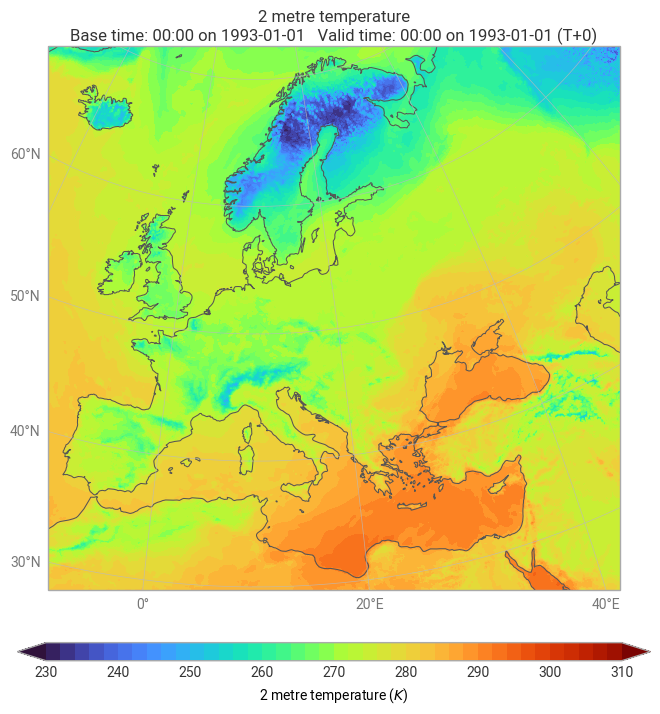

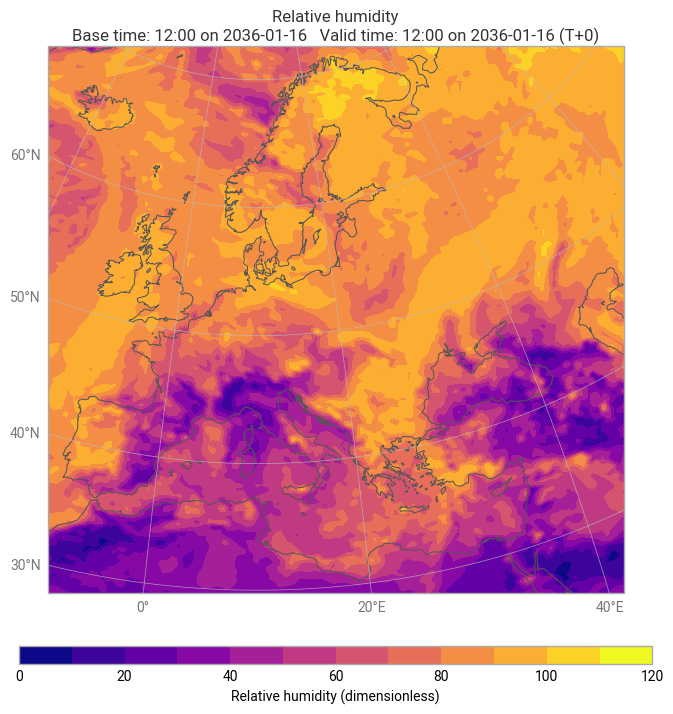

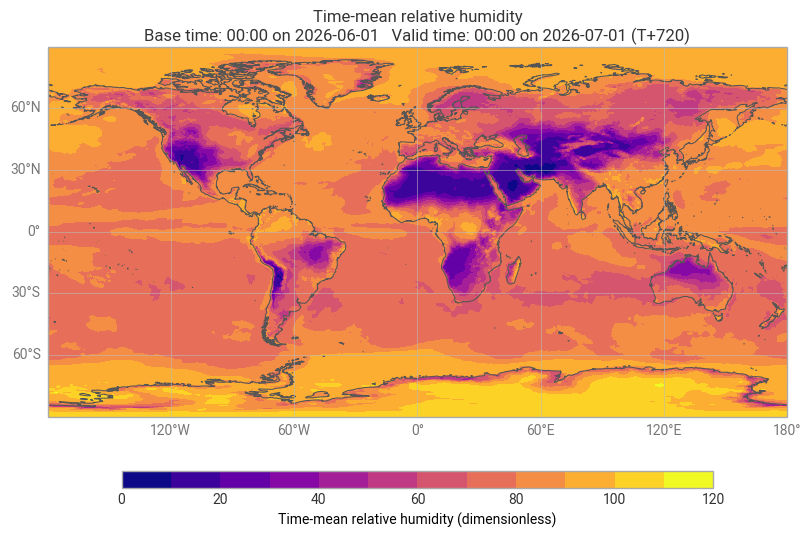

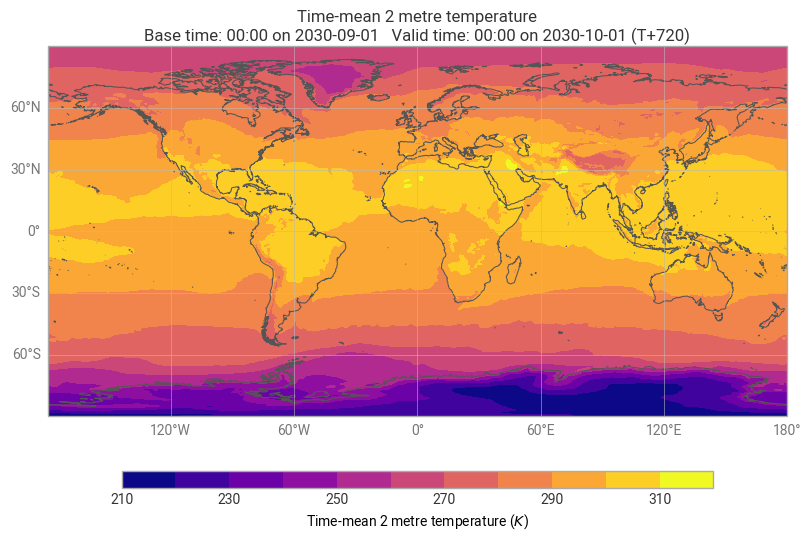

earthkit.plots.quickplot(data)
