Climate DT Parameter - Data Access using DEDL HDA

🚀 Launch in JupyterHub

Prerequisites:

To search and access DEDL data a DestinE user account is needed
To search and access DT data an upgraded access is needed.

References:

Credit:

Earthkit and HDA Polytope used in this context are both packages provided by the European Centre for Medium-Range Weather Forecasts (ECMWF).

Climate DT - Parameter Plot - Data Access using DEDL HDA¶

Contents¶

Objective: This notebook has the aim to show how to how to use the HDA (Harmonized Data Access) API to query and access Climate DT data parameters and plot vector data. Below the main steps covered by this tutorial.
1. Setup: Import the required libraries.
2. Order and Download: How to filter and download Climate DT data.
3. Plot: How to visualize hourly data on single levels data through Earthkit.
Data Sources: https://destine.ecmwf.int/climate-change-adaptation-digital-twin-climate-dt/
Methods: The data request is performed using HDA REST API. The variables used in this notebook are the “U component of wind” and “V component of wind”
Prerequisites:
- To search and access DEDL data a DestinE user account is needed
- To search and access DT data an upgraded access is needed.
Expected Output:
- 2 grib file files containing the requested data,

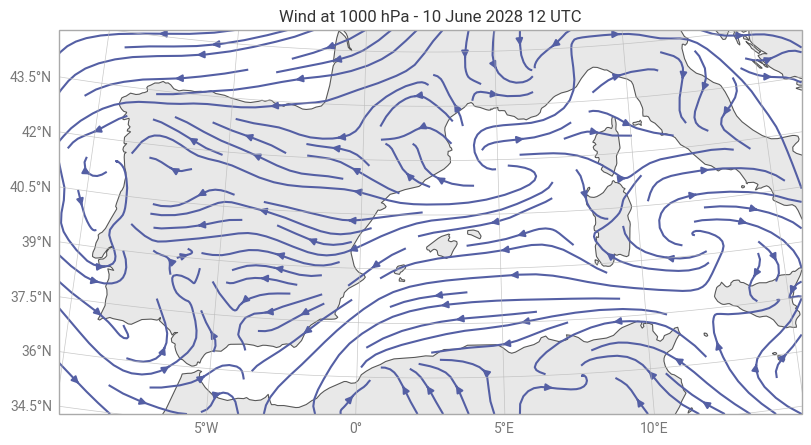

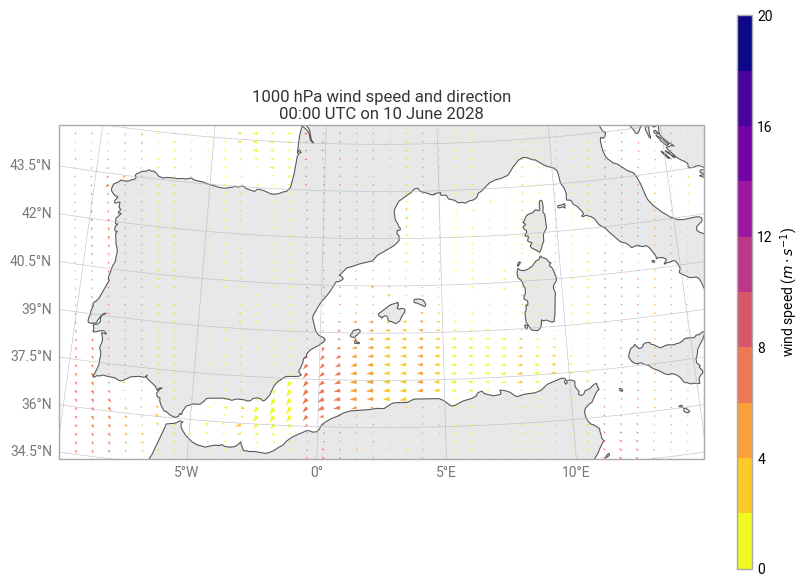

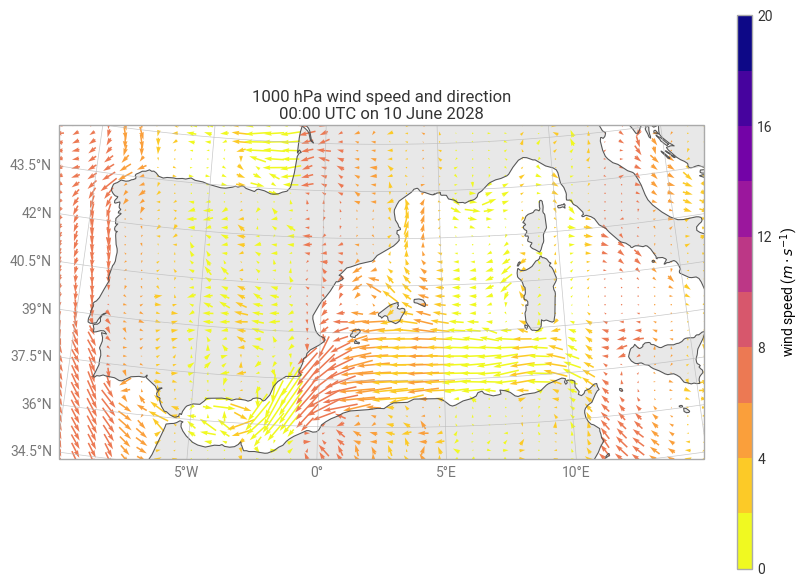

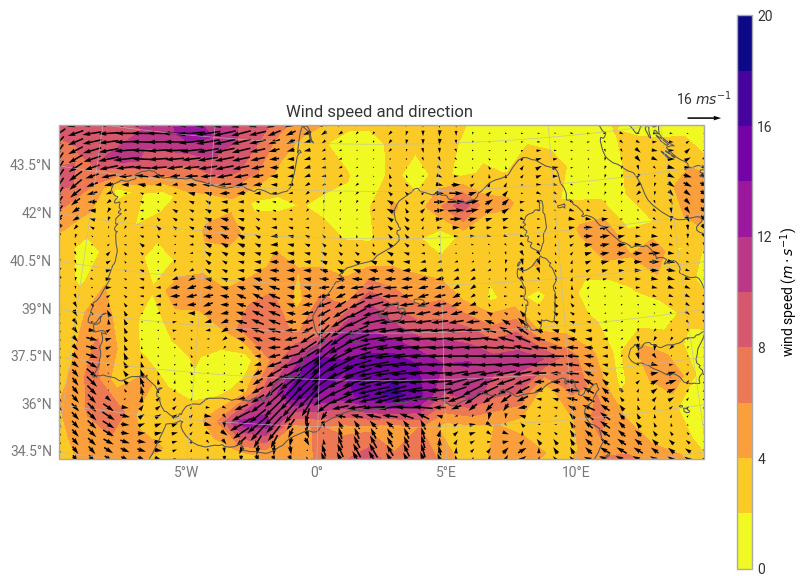

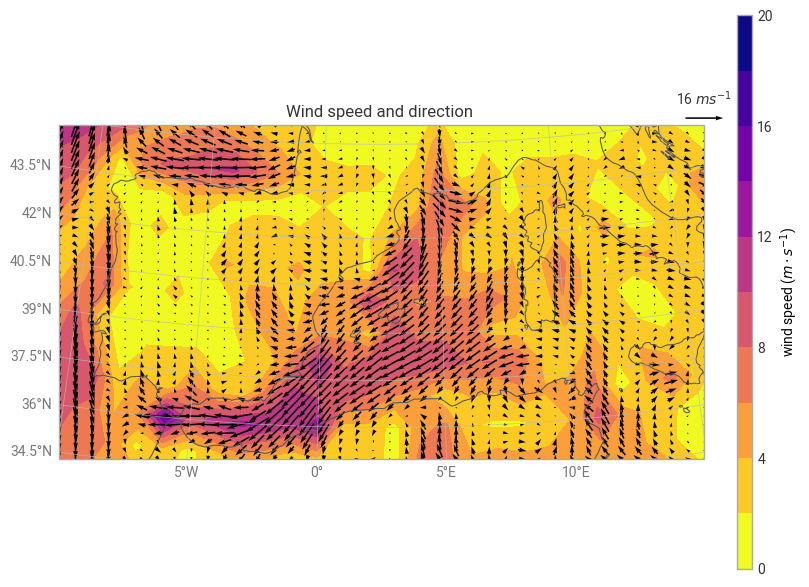

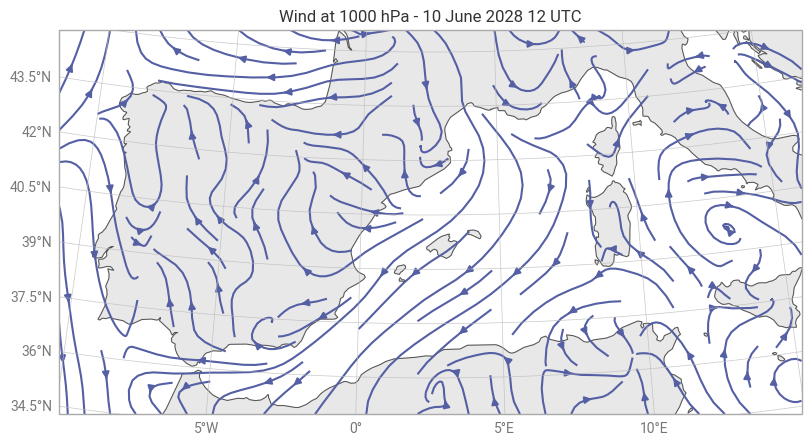

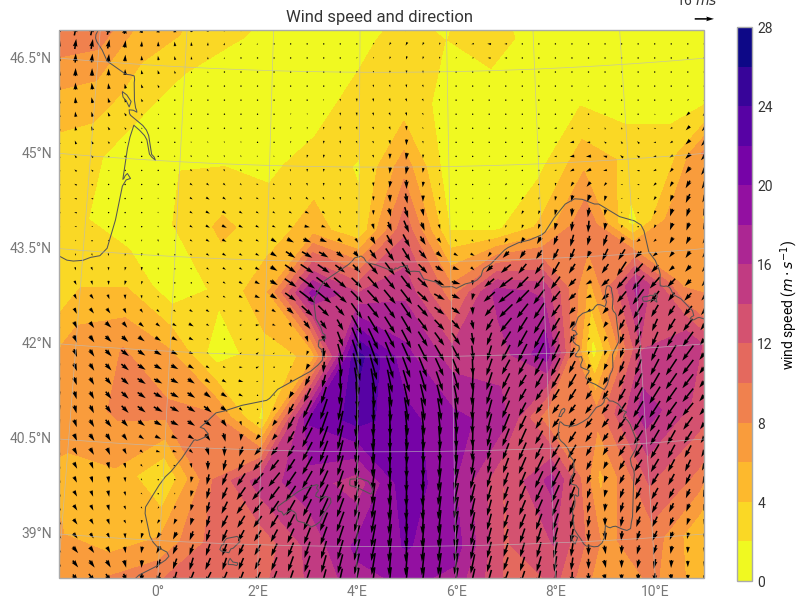

- 1 map plot of the winds intensity.

Setup¶

Import all the required packages.

import destinelab as deauth
import json
import datetime
import importlib.metadata

import requests
from requests.adapters import HTTPAdapter
from urllib3.util.retry import Retry
import os
from getpass import getpass
from tqdm import tqdm
import time
from datetime import datetime
from urllib.parse import unquote
from time import sleep
from IPython.display import JSON
import ipywidgets as w

Order and Download¶

Obtain Authentication Token¶

To access data we need to be authenticated.

Below how to request of an authentication token using the destinelab package.

DESP_USERNAME = input("Please input your DESP username: ")
DESP_PASSWORD = getpass("Please input your DESP password: ")

auth = deauth.AuthHandler(DESP_USERNAME, DESP_PASSWORD)
access_token = auth.get_token()
if access_token is not None:
    print("DEDL/DESP Access Token Obtained Successfully")
else:
    print("Failed to Obtain DEDL/DESP Access Token")

auth_headers = {"Authorization": f"Bearer {access_token}"}

Please input your DESP username:  eum-dedl-user
Please input your DESP password:  ········

Response code: 200
DEDL/DESP Access Token Obtained Successfully

Response code: 200
DEDL/DESP Access Token Obtained Successfully

Check if DT access is granted¶

If DT access is not granted, you will not be able to execute the rest of the notebook.

import importlib
installed_version = importlib.metadata.version("destinelab")
version_number = installed_version.split('.')[1]
if((int(version_number) >= 8 and float(installed_version) < 1) or float(installed_version) >= 1):
    auth.is_DTaccess_allowed(access_token)

DT Output access allowed

HDA Endpoints¶

HDA API is based on the Spatio Temporal Asset Catalog specification (STAC). When accessing DestinE data through the HDA API, it is useful to define a small set of configuration constants upfront. These typically include:

The STAC API endpoint exposed by HDA
The collection name

While the collection name can be specified as a constant, it does not need to be known in advance, as available collections can be discovered dynamically using the discovery API.

COLLECTION_ID="EO.ECMWF.DAT.D1.DT_CLIMATE.G1.SCENARIOMIP_SSP3-7.0_IFS-NEMO.R1"

HDA_STAC_ENDPOINT="https://hda.data.destination-earth.eu/stac/v2"
print("STAC endpoint: ", HDA_STAC_ENDPOINT)

STAC endpoint:  https://hda.data.destination-earth.eu/stac/v2

HDA_DISCOVERY_ENDPOINT = HDA_STAC_ENDPOINT+'/collections'
print("HDA discovery endpoint: ", HDA_DISCOVERY_ENDPOINT)

HDA discovery endpoint:  https://hda.data.destination-earth.eu/stac/v2/collections

HDA Discovery¶

For this example we want to access the Future Projection obtained using the IFS-NEMO model of the Climate Change Adaptation Digital Twin data. To find the right collection ID to use for querying HDA we can use the free text search offered by the HDA Discovery API searching for, e.g., Climate Change Adaptation Digital Twin, Future Projection and IFS-NEMO: HDA Discovery API

The result of this operation will give us the collection ID and some other useful information like the temporal extent and the available parameters.


discovery_json = requests.get(HDA_DISCOVERY_ENDPOINT,params =
                             {"q": '"Climate Change Adaptation Digital Twin","Future Projection","IFS-NEMO"'}).json()

print("\nThe discovery result give us:\nthe collection ID : ", json.dumps(discovery_json["collections"][0].get("id")))
print("\nIts time extension : ", json.dumps(discovery_json["collections"][0].get("extent").get("temporal").get("interval")))


The discovery result give us:
the collection ID :  "EO.ECMWF.DAT.D1.DT_CLIMATE.G1.SCENARIOMIP_SSP3-7.0_IFS-NEMO.R1"

Its time extension :  [["2020-01-01T00:00:00Z", "2039-12-31T23:59:59Z"]]

Below the available parameters for this Climate DT collection (activity= ScenarioMIP, experiment= SSP3-7.0 and model= IFS-NEMO):


print("\nThe available parameters: ")
print("(Type in the text box to narrow the list. When only one item remains, its details will appear)")


keys = sorted(discovery_json["collections"][0]["cube:variables"])
txt = w.Text(description="")
out = w.Output()
def run(_):
    q = txt.value.lower()
    with out:
        out.clear_output();
        matches = [k for k in keys if q in k.lower()]
        for k in matches:
            print(k)
            if len(matches)==1:
                var = discovery_json["collections"][0]["cube:variables"][k]
                print(var["description"], "\n")
                print(json.dumps(var["attrs"], indent=2))
                #print(json.dumps(discovery_json["collections"][0]["cube:variables"][k], indent=2))


txt.observe(run, names="value"); display(txt, out); run(None)

#print("\nThe information related to each parameter, e.g. the 2 metre temperature: ")
#JSON(discovery_json["collections"][0].get("cube:variables").get("2_metre_temperature(sfc)"))

Order and download data¶

After selecting the correct collection, we need to set up a filter to request our data of interest.

We are interested to the ‘10 metre U wind component’ and ‘10 metre V wind component’, we can retrieve the 2 parameters details (parameter_ID, leveltype, product_type) using the Discovery API and the text box in the cell above to narrow down the list to our parameter of interest.

With this information, we can:

use search to get the precise body and URL needed for the request
use order to directly request the data

Examples on how to use the parameter info to search DT data can be found in the ClimateDT-ParameterPlotter.ipynb or in the ClimateDT-ROISelectionandDataAnalysis.ipynb

Below our filter of interest

datechoice = "20280610"
filter_params = {
        "resolution": "high",      # standard/ high
        "time": "0000",            # choose the hourly slot(s)
        "type": "fc",              # fixed forecasted fields
        "levtype": "pl",          # Surface fields (levtype=sfc), Height level fields (levtype=hl), Pressure level fields (levtype=pl), Model Level (Levtype=ml)
        "levelist": "1000",      # 1000 hPa ~100 m (near sea level)
        "param": "131",             # 10 metre U wind component
        "date":datechoice
    }

In this example, we proceed directly with placing the data order using the order endpoint.

The ordering workflow consists of the following steps:

STEP1 - submit an order with parameters directly to the collection,
STEP2 - monitor the returned STAC item status,
STEP3 - download the asset when ready.

STEP 1 - Submit an Order¶

We use the defined filter to submit the order

#timeout and step for polling (sec)
TIMEOUT = 300
STEP = 1
ONLINE_STATUS = "online"

response = requests.post(f"{HDA_STAC_ENDPOINT}/collections/{COLLECTION_ID}/order", json=filter_params, headers=auth_headers)

if response.status_code != 200:
    print(response.content)
response.raise_for_status()

ordered_item = response.json()

product_id = ordered_item["id"]
storage_tier = ordered_item["properties"].get("storage:tier", "online")
order_status = ordered_item["properties"].get("order:status", "unknown")
federation_backend = ordered_item["properties"].get("federation:backends", [None])[0]

print(f"Product ordered: {product_id}")
print(f"Provider: {federation_backend}")
print(f"Storage tier: {storage_tier} (product must have storage tier \"online\" to be downloadable)")
print(f"Order status: {order_status}")

self_url = f"{HDA_STAC_ENDPOINT}/collections/{COLLECTION_ID}/items/{product_id}"
item = {}

Product ordered: 8d511819-199f-4203-a72c-8158f4e23352
Provider: dedt_lumi
Storage tier: offline (product must have storage tier "online" to be downloadable)
Order status: ordered

STEP 2 - Monitor the status¶

The status of an order can be:

shipping, that means that the order is in progress;
succeeded, that means that the order is completed;
failed, that means that the order is in error.

for i in range(0, TIMEOUT, STEP):
    print(f"Polling {i + 1}/{TIMEOUT // STEP}")

    response = requests.get(self_url, headers=auth_headers)
    if response.status_code != 200:
        print(response.content)
    response.raise_for_status()
    item = response.json()

    storage_tier = item["properties"].get("storage:tier", ONLINE_STATUS)

    if storage_tier == ONLINE_STATUS:
        download_url = item["assets"]["downloadLink"]["href"]
        print("Product is ready to be downloaded.")
        print(f"Asset URL: {download_url}")
        break
    sleep(STEP)
else:
    order_status = item["properties"].get("order:status", "unknown")
    print(f"We could not download the product after {TIMEOUT // STEP} tries. Current order status is {order_status}")

response = requests.get(download_url, stream=True, headers=auth_headers)
response.raise_for_status()

Polling 1/300
Polling 2/300
Product is ready to be downloaded.
Asset URL: https://hda-download.lumi.data.destination-earth.eu/data/dedt_lumi/EO.ECMWF.DAT.D1.DT_CLIMATE.G1.SCENARIOMIP_SSP3-7.0_IFS-NEMO.R1/8d511819-199f-4203-a72c-8158f4e23352/downloadLink

STEP 3 - Download¶

content_disposition = response.headers.get('Content-Disposition')
total_size = int(response.headers.get("content-length", 0))
if content_disposition:
    filename = content_disposition.split('filename=')[1].strip('"')
    filename = unquote(filename)
else:
    filename = os.path.basename(url)

# Open a local file in binary write mode and write the content
print(f"downloading {filename}")

with tqdm(total=total_size, unit="B", unit_scale=True) as progress_bar:
    with open(filename, 'wb') as f:
        for data in response.iter_content(1024):
            progress_bar.update(len(data))
            f.write(data)

downloading 8d511819-199f-4203-a72c-8158f4e23352.grib", attachment;

29.2MB [00:00, 61.4MB/s]

Let’s do the same with the V component of the wind

datechoice = "20280610"
filter_params = {
        "resolution": "high",      # standard/ high
        "time": "0000",            # choose the hourly slot(s)
        "type": "fc",              # fixed forecasted fields
        "levtype": "pl",          # Surface fields (levtype=sfc), Height level fields (levtype=hl), Pressure level fields (levtype=pl), Model Level (Levtype=ml)
        "levelist": "1000",
        "param": "132",             # 10 metre V wind component
        "date":datechoice
    }

STEP 1 - Submit an Order¶

We use the defined filter to submit the order

#timeout and step for polling (sec)
TIMEOUT = 300
STEP = 1
ONLINE_STATUS = "online"

response = requests.post(f"{HDA_STAC_ENDPOINT}/collections/{COLLECTION_ID}/order", json=filter_params, headers=auth_headers)

if response.status_code != 200:
    print(response.content)
response.raise_for_status()

ordered_item = response.json()

product_id = ordered_item["id"]
storage_tier = ordered_item["properties"].get("storage:tier", "online")
order_status = ordered_item["properties"].get("order:status", "unknown")
federation_backend = ordered_item["properties"].get("federation:backends", [None])[0]

print(f"Product ordered: {product_id}")
print(f"Provider: {federation_backend}")
print(f"Storage tier: {storage_tier} (product must have storage tier \"online\" to be downloadable)")
print(f"Order status: {order_status}")

self_url = f"{HDA_STAC_ENDPOINT}/collections/{COLLECTION_ID}/items/{product_id}"
item = {}

Product ordered: 95331ddc-34f6-47f7-bc3f-a11a99aed02a
Provider: dedt_lumi
Storage tier: offline (product must have storage tier "online" to be downloadable)
Order status: ordered

STEP 2 - Monitor the status¶

The status of an order can be:

shipping, that means that the order is in progress;
succeeded, that means that the order is completed;
failed, that means that the order is in error.

for i in range(0, TIMEOUT, STEP):
    print(f"Polling {i + 1}/{TIMEOUT // STEP}")

    response = requests.get(self_url, headers=auth_headers)
    if response.status_code != 200:
        print(response.content)
    response.raise_for_status()
    item = response.json()

    storage_tier = item["properties"].get("storage:tier", ONLINE_STATUS)

    if storage_tier == ONLINE_STATUS:
        download_url = item["assets"]["downloadLink"]["href"]
        print("Product is ready to be downloaded.")
        print(f"Asset URL: {download_url}")
        break
    sleep(STEP)
else:
    order_status = item["properties"].get("order:status", "unknown")
    print(f"We could not download the product after {TIMEOUT // STEP} tries. Current order status is {order_status}")

response = requests.get(download_url, stream=True, headers=auth_headers)
response.raise_for_status()

Polling 1/300
Polling 2/300
Product is ready to be downloaded.
Asset URL: https://hda-download.lumi.data.destination-earth.eu/data/dedt_lumi/EO.ECMWF.DAT.D1.DT_CLIMATE.G1.SCENARIOMIP_SSP3-7.0_IFS-NEMO.R1/95331ddc-34f6-47f7-bc3f-a11a99aed02a/downloadLink

STEP 3 - Download¶

content_disposition = response.headers.get('Content-Disposition')
total_size = int(response.headers.get("content-length", 0))
if content_disposition:
    filenameV = content_disposition.split('filename=')[1].strip('"')
    filenameV = unquote(filenameV)
else:
    filename = os.path.basename(url)

# Open a local file in binary write mode and write the content
print(f"downloading {filenameV}")

with tqdm(total=total_size, unit="B", unit_scale=True) as progress_bar:
    with open(filenameV, 'wb') as f:
        for data in response.iter_content(1024):
            progress_bar.update(len(data))
            f.write(data)

downloading 95331ddc-34f6-47f7-bc3f-a11a99aed02a.grib", attachment;

29.2MB [00:00, 52.8MB/s]

EarthKit¶

Lets plot the result file with EarthKit.

import earthkit.data as ekd
ds1 = ekd.from_source("file", filename)
ds2 = ekd.from_source("file", filenameV)
ds = ds1 + ds2
ds.ls()

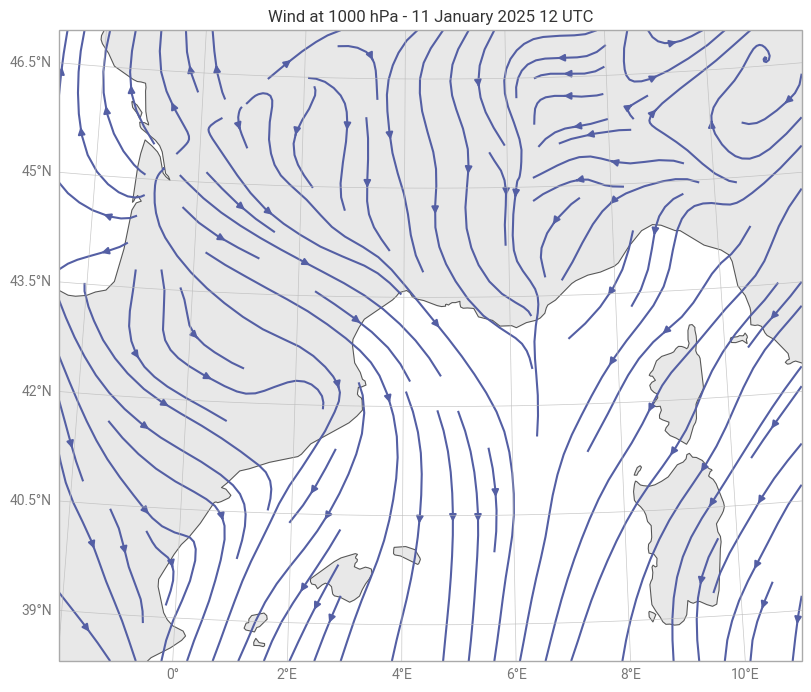

import earthkit.plots
chart = earthkit.plots.Map(domain=[-10, 15, 35, 45])

style = earthkit.plots.styles.Style(
    colors="plasma_r",
    levels=range(0, 22, 2),
    units="m s-1",
)

chart.quiver(ds, style=style)
chart.legend(label="wind speed ({units})", location="right")

chart.land()
chart.coastlines()
chart.gridlines()

chart.title(
    "{level} hPa wind speed and direction\n"
    "{time:%H:%M UTC on %-d %B %Y}"
)

chart.show()
