Destination Earth - ERA5 hourly data on single levels from 1940 to present - Data Access using DEDL HDA

Documentation DestinE Data Lake HDA

Documentation ERA5

Author: EUMETSAT

Credit: Earthkit and HDA Polytope used in this context are both packages provided by the European Centre for Medium-Range Weather Forecasts (ECMWF).

DEDL Harmonised Data Access is used in this example.

Obtain Authentication Token

pip install --quiet --upgrade destinelab

Note: you may need to restart the kernel to use updated packages.

import requests
import json
import os
from getpass import getpass
import destinelab as deauth

First, we get an access token for the API

DESP_USERNAME = input("Please input your DESP username or email: ")
DESP_PASSWORD = getpass("Please input your DESP password: ")

auth = deauth.AuthHandler(DESP_USERNAME, DESP_PASSWORD)
access_token = auth.get_token()
if access_token is not None:
    print("DEDL/DESP Access Token Obtained Successfully")
else:
    print("Failed to Obtain DEDL/DESP Access Token")

auth_headers = {"Authorization": f"Bearer {access_token}"}

Response code: 200
DEDL/DESP Access Token Obtained Successfully

Query using the DEDL HDA API

Filter

We have to setup up a filter and define which data to obtain.

Filter Options HDA

datechoice = "2020-06-10T10:00:00Z"
filters = {
    key: {"eq": value}
    for key, value in {
        "format": "grib",
        "variable": "2m_temperature",
        "time": "12:00"
    }.items()
}

## Make Data Request

response = requests.post("https://hda.data.destination-earth.eu/stac/search", headers=auth_headers, json={
 "collections": ["EO.ECMWF.DAT.REANALYSIS_ERA5_SINGLE_LEVELS"],
    "datetime": datechoice,
    "query": filters
})

if(response.status_code!= 200):
    (print(response.text))
# Requests to EO.ECMWF.DAT.REANALYSIS_ERA5_SINGLE_LEVELS always return a single item containing all the requested data
#print(response.json())
product = response.json()["features"][0]
#product id
product["id"]

'ERA5_SL_20200610_20200610_ab93e027933ceb24cb767654a3b4a545a9c533c0'

Once our product found, we download the data.

from IPython.display import JSON


# DownloadLink is an asset representing the whole product
download_url = product["assets"]["downloadLink"]["href"]
HTTP_SUCCESS_CODE = 200
HTTP_ACCEPTED_CODE = 202

direct_download_url=''

response = requests.get(download_url, headers=auth_headers)
if (response.status_code == HTTP_SUCCESS_CODE):
    direct_download_url = product['assets']['downloadLink']['href']
elif (response.status_code != HTTP_ACCEPTED_CODE):
    print(response.text)
print(download_url)
response.raise_for_status()

https://hda.data.destination-earth.eu/stac/collections/EO.ECMWF.DAT.REANALYSIS_ERA5_SINGLE_LEVELS/items/ERA5_SL_20200610_20200610_ab93e027933ceb24cb767654a3b4a545a9c533c0/download?provider=copernicus_climate_data_store&_dc_qs=%257B%2522data_format%2522%253A%2B%2522grib%2522%252C%2B%2522day%2522%253A%2B%252210%2522%252C%2B%2522month%2522%253A%2B%252206%2522%252C%2B%2522product_type%2522%253A%2B%2522reanalysis%2522%252C%2B%2522time%2522%253A%2B%252212%253A00%2522%252C%2B%2522variable%2522%253A%2B%25222m_temperature%2522%252C%2B%2522year%2522%253A%2B%25222020%2522%257D

If the data is already available in the cache we can directly download it. If the data is not available, we can see that our request is in queuedstatus.
We will then poll the API until the data is ready and then download it.

from tqdm import tqdm
import time
import re

# we poll as long as the data is not ready
if direct_download_url=='':
    while url := response.headers.get("Location"):
        print(f"order status: {response.json()['status']}")
        response = requests.get(url, headers=auth_headers, stream=True)

if (response.status_code not in (HTTP_SUCCESS_CODE,HTTP_ACCEPTED_CODE)):
     (print(response.text))
response.raise_for_status()

filename = re.findall('filename=\"?(.+)\"?', response.headers["Content-Disposition"])[0]
total_size = int(response.headers.get("content-length", 0))

print(f"downloading {filename}")

with tqdm(total=total_size, unit="B", unit_scale=True) as progress_bar:
    with open(filename, 'wb') as f:
        for data in response.iter_content(1024):
            progress_bar.update(len(data))
            f.write(data)

order status: running
downloading 1bcb7a9f9051f44748d0aacc9831caec.grib

100%|██████████| 2.08M/2.08M [00:00<00:00, 12.1MB/s]

EarthKit

Lets plot the result file [EarthKit Documentation] https://earthkit-data.readthedocs.io/en/latest/index.html

This section requires that you have ecCodes >= 2.35 installed on your system.
You can follow the installation procedure at https://confluence.ecmwf.int/display/ECC/ecCodes+installation

import earthkit.data
import earthkit.maps
import earthkit.regrid

data = earthkit.data.from_source("file", filename)
data.ls

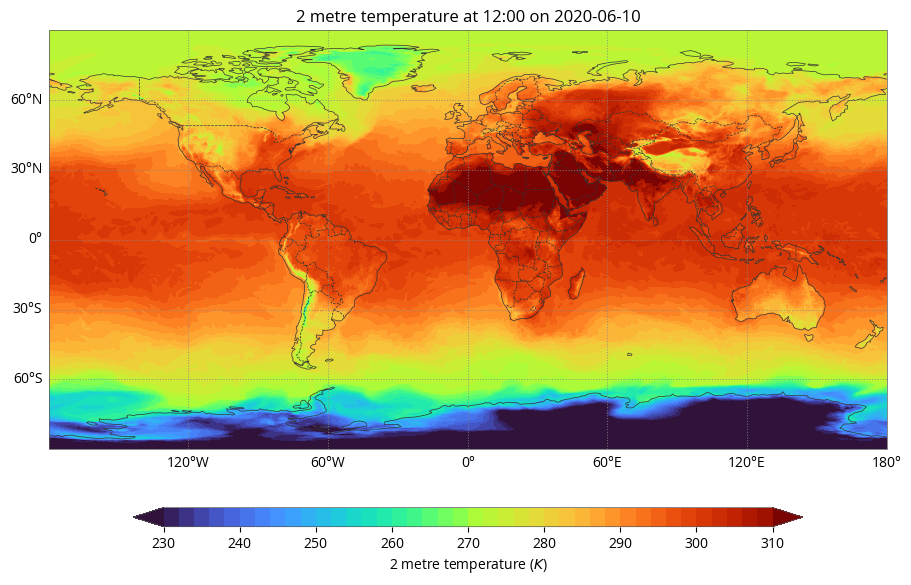

earthkit.maps.quickplot(data,#style=style
                       )
